List Entry Summary
This building is listed under the Planning (Listed Buildings and Conservation Areas) Act 1990 as amended for its special architectural or historic interest.
Name: ST CATHERINES COLLEGE, PODIUM AND ALL BUILDINGS UPON IT
List Entry Number: 1229934
Location
ST CATHERINES COLLEGE, PODIUM AND ALL BUILDINGS UPON IT, MANOR ROAD
The building may lie within the boundary of more than one authority.
County: Oxfordshire
District: Oxford
District Type: District Authority
Parish: Non Civil Parish
National Park: Not applicable to this List entry.
Grade: I
Date first listed: 30-Mar-1993
Date of most recent amendment: Not applicable to this List entry.
Legacy System Information
The contents of this record have been generated from a legacy data system.
Legacy System: LBS
UID: 246008
Asset Groupings
This List entry does not comprise part of an Asset Grouping. Asset Groupings are not part of the official record but are added later for information.
List Entry Description
Summary of Building
Legacy Record - This information may be included in the List Entry Details.
Reasons for Designation
Legacy Record - This information may be included in the List Entry Details.
History
Legacy Record - This information may be included in the List Entry Details.
Details
OXFORD MANOR ROAD
OXFORDSHIRE
SP 50 NW
612/24/10023 St Catherine's
College: 'podium'
and all buildings
upon it.
GV I
College buildings, raised on a podium, including dining hall,
common room blocks; two residential blocks; library; Bernard
Sunley Lecture Theatre; bell tower; piers and covering to
walkways to east and west of library and east and west of
hall; bridge adjoining west side of podium; brick walls
enclosing canal and patio areas on western edge of podium;
brick walls to patio areas to eastern edge of podium; twenty
five short stretches of garden wall all running east-west,
some incorporating seats; paving to podium surface and steps
to east and south sides. 1961-66. Arne Jacobsen. Narrow,
buff sandlime bricks laid in a raking stretcher bond;
reinforced concrete, flat roof. Concrete paving slabs; bronze
vertical sheet cladding to upper floor of library. Almost
symmetrical layout with common rooms and attached hall to
north of central quad, library and lecture theatres aligned to
south of hall; two residential blocks to east and west sides
of podium. Hall largely brick clad, with tall aisled interior
having cruciform piers. Single storeyed common room block
with vertical brick panels between vertical floor to ceiling
windows. Library of same height and basic dimensions as hall,
but with recessed ground floor with brick cladding and
projecting gallery, clad in bronze panels between floor to
ceiling glazing. Lecture theatre has matching frame to hall
and library but has the same 'footprint' as the library; the
upper storey is fully glazed with projecting metal sunscreens.
The residential blocks are three storeys with brick to ground
floor and fully glazed upper floors; metal framed windows with
strong vertical mullions. Four covered walkways with glass
and metal roofs resting on brick piers link the buildings
around the central quad. There are also low stretches of wall
to outer edges of podium, providing enclosure for fellows'
rooms. The bell tower, adjacent to the lecture theatre
comprises two slabs of concrete, linked at the top, with
vertical bronze bell louvres. There are twenty five short
stretches of wall, some with seats, in the gardens to the
north and the south ends of the podium; all run north-south
and providing privacy and visual enclosure for the gardens.
The paving of the podium comprises rectangular concrete slabs,
set out on an east-west grid, which coincides with the bay
module of the buildings and is marked in the paving by rows of
narrow corrugated slabs; at intervals planting gaps are left
in the paving, an arrangement designed by the architect.
These features form the core of the St Catherine's College
layout with the Music Room, Master's House, the wall between
these, the bicycle shed and the squash courts (qv).
Architectural Review vol 136, 1964 pp 175-9 and 188-95.
Listing NGR: SP5226706611
Selected Sources
Books and journals'Architectural Review' in Architectural Review, (1964), 175-179
'Architectural Review' in Architectural Review, (1964), 188-195

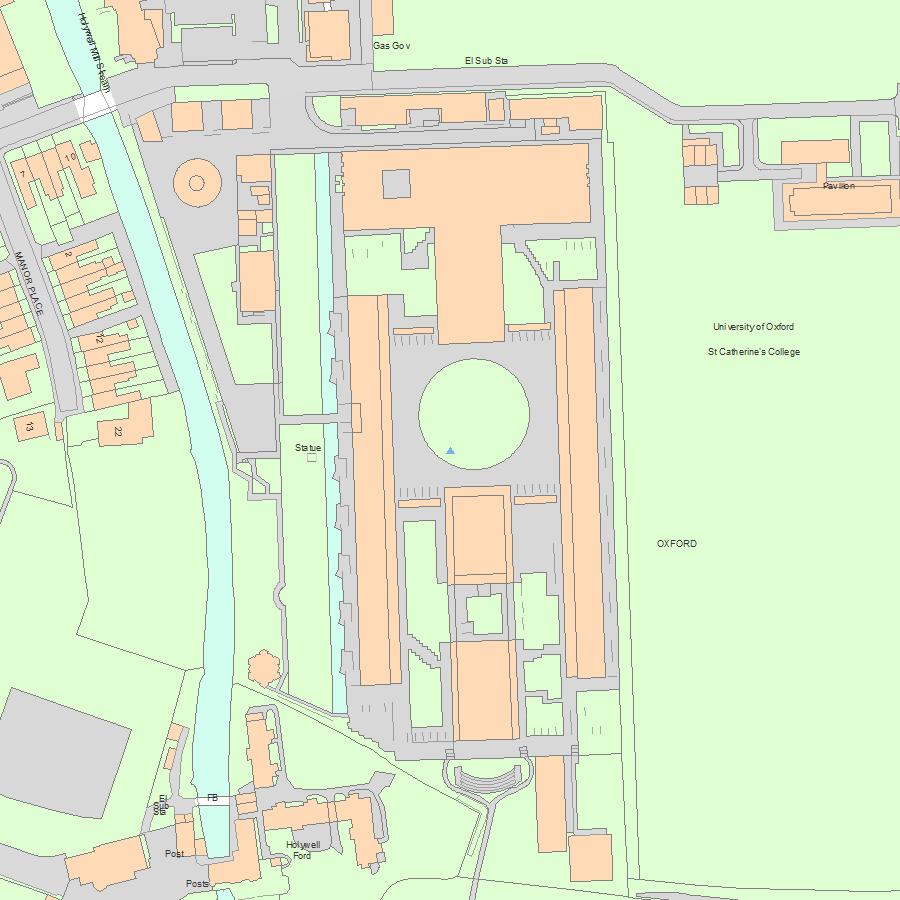

Map
National Grid Reference: SP 52258 06640
The below map is for quick reference purposes only and may not be to scale. For a copy of the full scale map, please see the attached PDF - 1229934.pdf - Please be aware that it may take a few minutes for the download to complete.
© Crown Copyright and database right 2018. All rights reserved. Ordnance Survey Licence number 100024900.
© British Crown and SeaZone Solutions Limited 2018. All rights reserved. Licence number 102006.006.
This copy shows the entry on 26-Apr-2024 at 04:15:48.
